OK, I got slightly sidetracked. When I started doing the design review of all of my recently created PCBs, I realized that I really wanted to get one more design together for this tranche of boards from China. I’ve known that I wanted to create a simple CW keyer to use in future transceivers, and as a standalone product as well. This isn’t a number one priority, but I knew that I was going to have to write keyer code for the Project Yamhill front panel anyway, so I might as well just lay out a simple, basic Arduino-based keyer, which I can then leverage the code from to port right over to Project Yamhill.

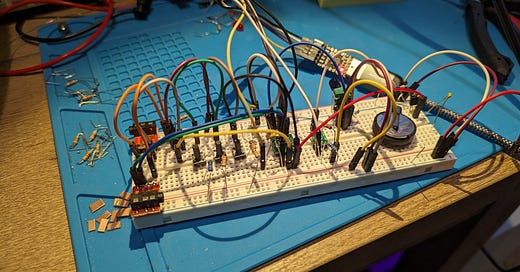

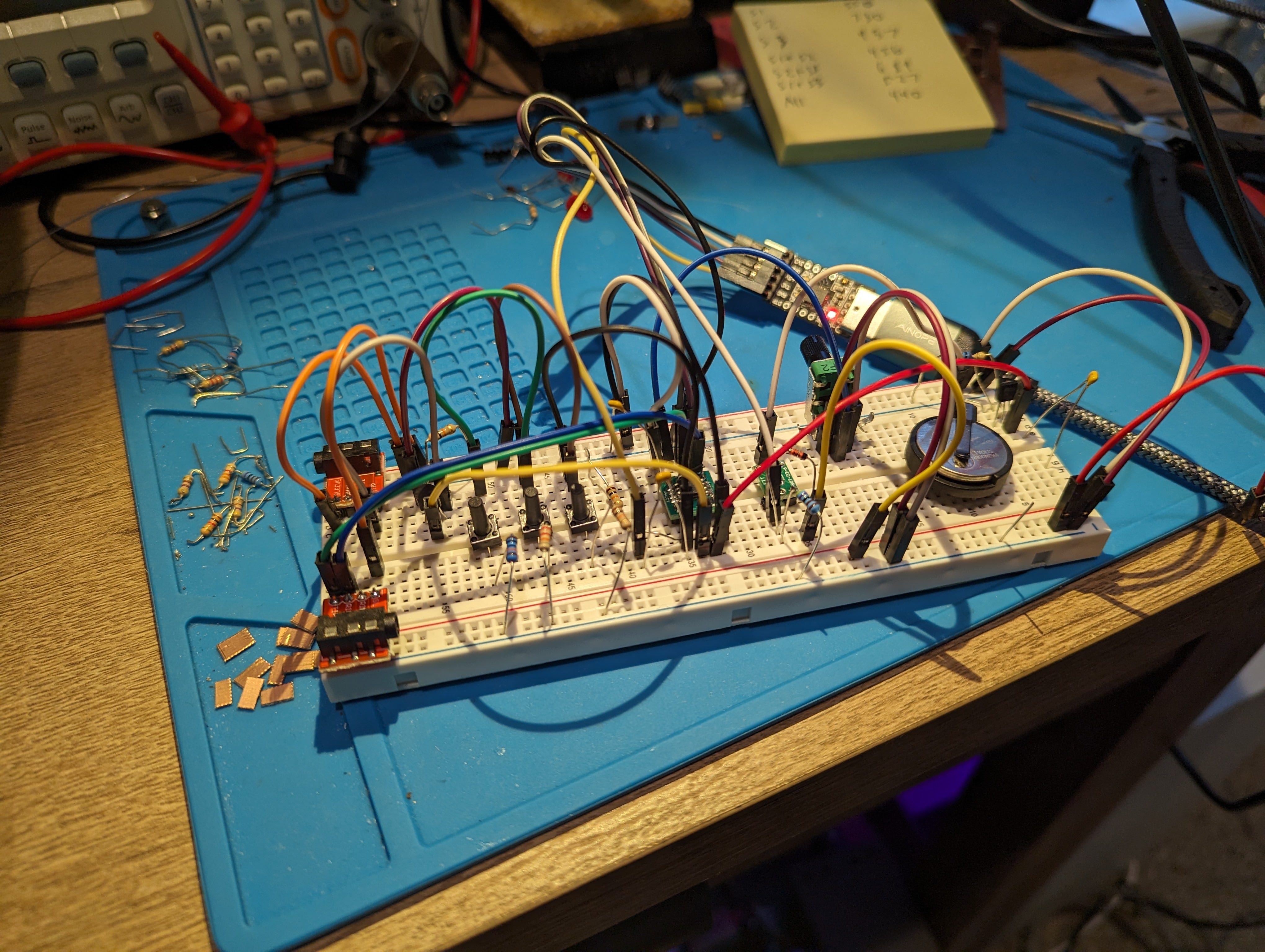

EtherKeyer Mini Breadboard Prototype

I wanted to use a microcontroller chip that is still available in DIP packaging, so that it could be soldered by hand by just about any builder. The natural choice seemed to be one of my favorites: the ATtiny85. The nice thing about this chip is that it has a lot of support for it, including an Arduino core. In laying out my initial circuit and looking at programming options, I stumbled upon a relatively new bootloader option that I had never heard of before, called Urboot. The bootloaders for the ATtinyx5 series that I remember working with in the past were pretty flaky, but this one was supposedly very stable and full-featured. So I decided to give it a try, and incorporated it in this project.

After studying all of the numerous options for configuring the bootloader, I figured out how to set it up so that it was able to connect using the same pins as the UART pins used in the Arduino board support serial library as well. By connecting my USB-UART bridge’s DTR pin to the RESET line of the ATtiny85, I was able to reliably flash a HEX file created with Arduino IDE onto the ‘85, and then run a sketch that could communicate with the PC on the same bridge. Pretty neat, and makes debugging a hell of a lot easier for the rest of the sketch!

By using my Etherkit Morse library for Arduino, it’s trivially easy to send CW from the PC serial terminal, via the UART, to the keyer. Here’s a video of me doing so, keying the Twin-T code practice oscillator that I talked about in my previous Substack post:

Not bad for a cheap little 8-pin microcontroller. Now that I’ve worked out the circuitry needed for this keyer, I can finish this board design and then resume my design review for the rest of the tranche. I still need to write the actual keyer code, but that can wait until after the PCBs are done and ordered. I’m a little behind schedule, but Chinese New Year is still a month out, so as long as I get the designs to fab by early next week, I think I’ll be just fine to beat the holiday.
